Coating Thickness Gauge Introduction of DR360 Coating Thickness Gauge

Technical parameters
Measuring range：0-1250μm
Operating environment：Temperature：0℃-60℃，Humidity：20%RH-90%RH，No strong magnetic field
Thinnest substrate: 0.3mm
Measurement accuracy：±(1%-3%)H+1.5μm
Resolution: 0.1μm / 1μm (0.1μm up to 100μm, 1μm above 100μ)
Minimum substrate area Φ11.5mm
Minimum radius of curvature: 5mm convex; 25mm concave
External dimensions: 130(L)×70(W)×25(H)mm
Weight：100g
Power supply: three (LR03) alkaline batteries

Send inquiry

Product Details

Parameter

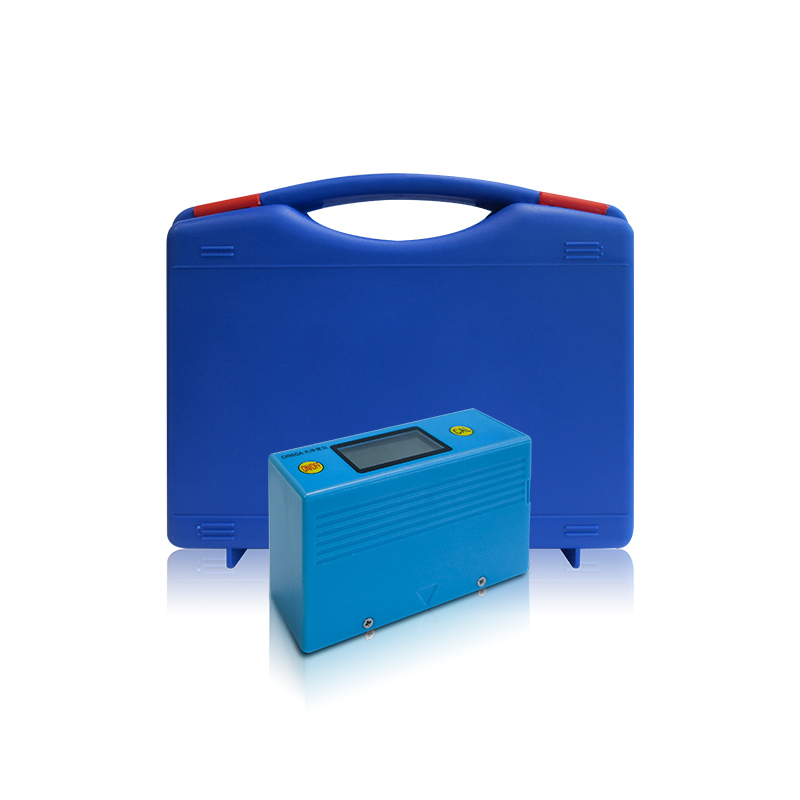

KH60A Gloss meter An instruction manual
KH60A intelligent gloss meter, metering device, is in accordance with international standards of ISO2813, DIN67530 and ASTMD523 international standards, national standards GB9754, GB9966, GB\/T13891 design and production, the technology reached JJG696-2002 "specular gloss and gloss plates" identification for a work machine requirements.
KH60A gloss meter product characteristics: small size, light weight,

truly portable machine.
With automatic continuous test functions, fool operation, the real smart machine.
Built-in adjustment function.
Save electricity, save worry, efficient, two No. 7 batteries can be used continuously for nearly 60 hours measured nearly a million data.
High stability, high precision.
LED long-life light source.

KH60A intelligent gloss meter technical parameters:
1.The parameter (GS gloss gloss units)
2 .Measuring range：0－199.9；resolution：0.1；Error value ：< 1.2 ；The stable value：± 0.4

projection angle: 60 °
Measure the window size: 14 x 28 mm
Host size: 110 * 38 * 70 mm (length x width x height)
Net weight: 300 g

KH60A intelligent gloss meter is mainly used for automobile, household appliances, instruments:
1.Automobile, household appliances, instruments, furniture and other industries: plastic, paint, paint surface gloss measurement.
2.Construction, decoration and other industries: floor, marble, granite, ceramic tile, ceramic surface gloss measurement.
3.printing, packaging industry: printing ink, paper surface gloss measurement.
4.Other industries need to surface gloss measurement

Method of use: after the boot, directly to the KH60A gloss meter bottom flat on the measured object surface, can automatically detect the surface gloss.

Factory list: 1, instrument box; 2, a host; 3, the standard board piece; 4, the instrument instructions a; 5, a certificate;6, a clean cloth
