The powerful 3-phase hot water high-pressure cleaner HDS 7/16 C from the HDS compact class has a clever single-button operation as well as large wheels and a steering roller/castor, which make handling and transport very easy for the user. Superior equipment and the extremely efficient and environment-friendly operation thanks to eco!efficiency mode characterise this machine. The EASY!Force high-pressure gun utilises the recoil force of the high-pressure jet to reduce the retaining force to zero, while the EASY!Lock quick-release couplings enable handling that is five times faster than conventional screw connections, without compromising on robustness or longevity. Tanks for cleaning agent and fuel are protected in the hard-wearing chassis that also permits tougher applications. Accessories, nozzles and tools can be easily stowed in the practical storage compartments.allows more heavy-duty use. Accessories, nozzles and tools can be stored easily in the practical storage compartments.
Technical data
| Power supply (Ph/V/Hz) |
3 / 400 / 50 |
| Flow rate (l/h) |
270 - 660 |
| Working pressure (bar/MPa) |
30 - 160 / 3 - 16 |
| Temperature (for supply 12 °C) (°C) |
max. 80 |
| Connected load (kW) |
4,7 |
| Consumption of fuel oil at full load (kg/h) |
4,1 |
| Consumption of heating oil in eco!efficiency mode (kg/h) |
3,3 |
| Power cable (m) |
5 |
| Fuel tank (l) |
15 |
| Weight (with accessories) (kg) |
98 |
| Weight incl. packaging (kg) |
106,8 |
| Dimensions (L × W × H) (mm) |
1060 x 650 x 920 |
Economic efficiency
eco!efficiency mode – economical and environmentally friendly, even during longer periods of use. Reduces fuel consumption and CO₂ emissions by 20%.
User-friendliness

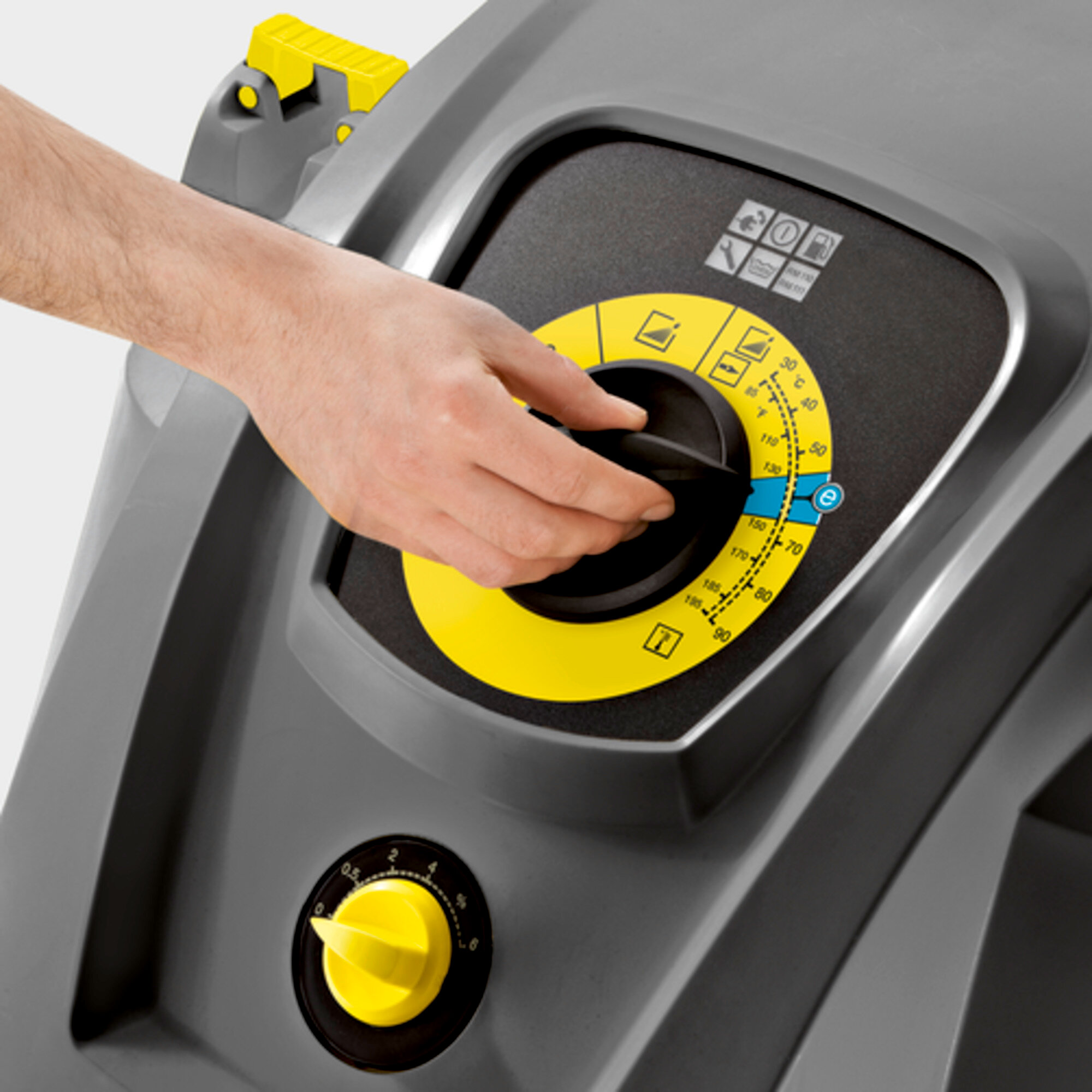

Intuitive operation thanks to the large single-button selector switch. Large tank opening with filling chute. System care bottle can be changed from the outside for added convenience.
Storage

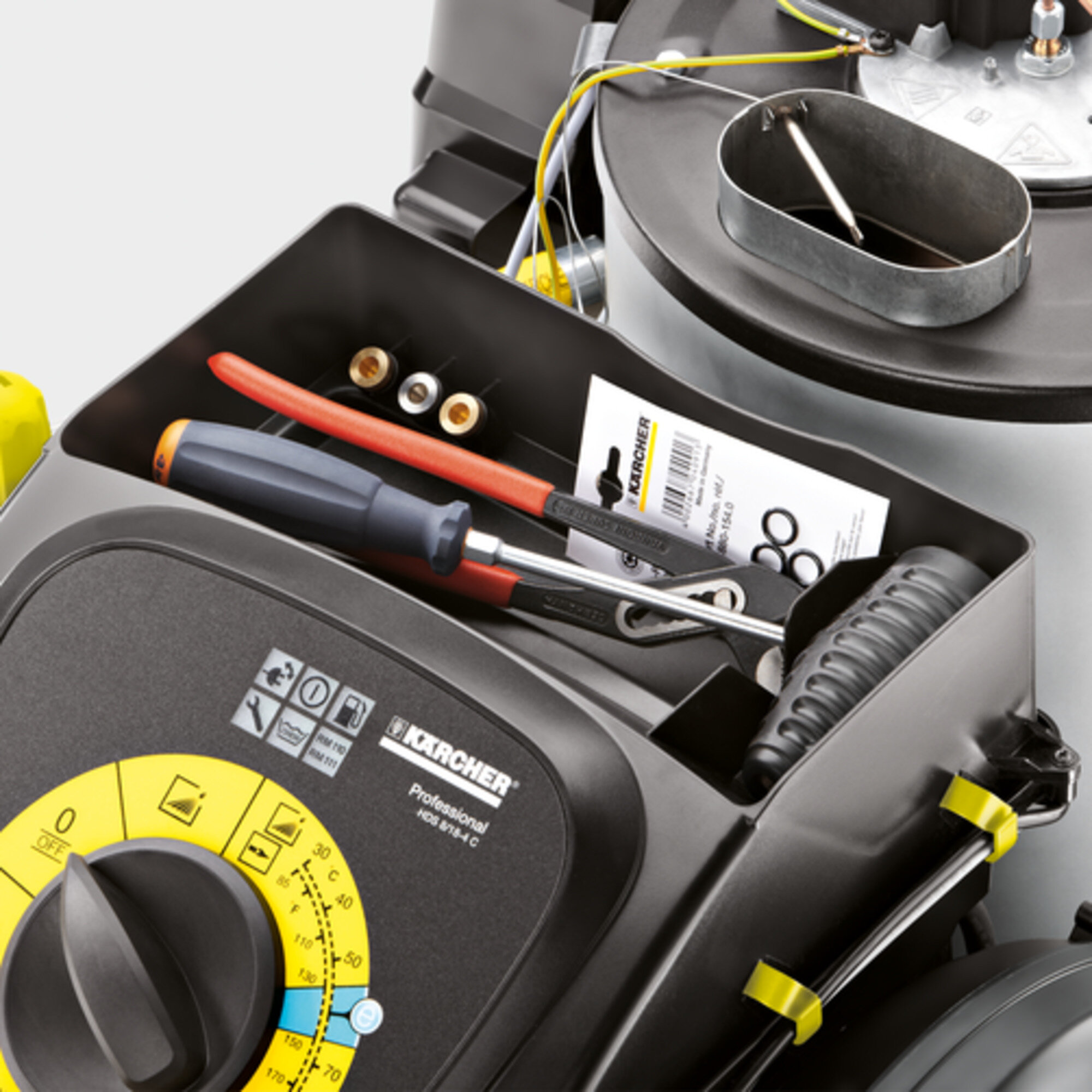

Lockable accessory compartment for nozzles, tools, etc. Storage hooks for power cable and high-pressure hose. Integrated lance holder for transport.
